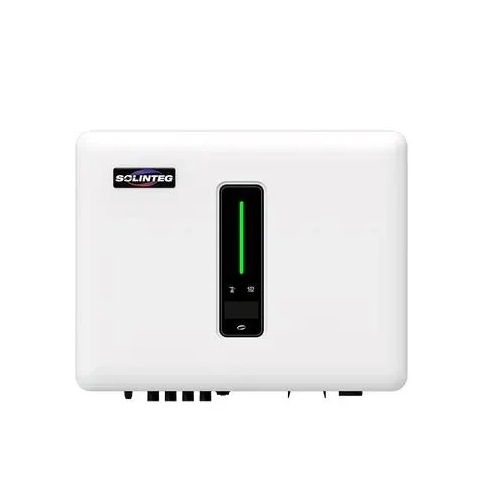

Hybrid Inverters > Solinteg MHS-3.6-30 Hybrid Inverter
The Solinteg MHS-3.6-30 Hybrid Inverter is the workhorse you've been waiting for. This single-phase champion packs a 3.6kW punch, efficiently converting the sun's rays into usable energy for your home. But it's not just about raw power; the MHS-3.6-30 is a master of versatility.
This inverter is more than just muscle, though. It's got brains too. The integrated energy management system acts like a smart conductor, optimizing energy flow based on your real-time needs and solar production. This not only reduces your reliance on the grid but also helps you save money on electricity bills.
| ★ | 110% continuous AC output overloading. |
| ★ | 130% maximum back-up output overloading @60s. |
| ★ | 160% DC oversizing. |
| ★ | Compact and elegant design with integrated die-casting technology. |
| ★ | Convenient installation and O&M with horizontal design and quick plug terminals. |
| ★ | Easy data check via both OLED display and Application. |
| ★ | Intelligent energy management with Solinteg built-in EMS. |
| ★ | 85-450V wide battery voltage range. |
| AC grid connection type | Single-phase |
| Recommended Max. input power | 5.76kW |
| Start-up voltage | 80V |
| Max. DC Input Voltage | 600V |
| Rated DC input voltage | 360V |
| MPPT voltage range | 100V - 550V |
| Number of MPPT | 1 |
| No. of DC inputs per MPPT | 1 |
| Max. input current | 15A |
| Max. short-circuit current | 20A |
| Battery type | Lithium Battery (with BMS) |
| Battery voltage range | 85V - 450V |
| Maximum charging/discharge current | 30A/30A |
| Rated output power | 3.60kW |
| Rated output apparent power | 3.96kVA |
| Max. output apparent power | 3.96kVA |
| Max. input apparent power | 7.20kVA |
| Max. Charging Power of Battery | 3.6kW |
| Rated AC voltage | L/N/PE; 220/230/240V |
| Power Factor | 0.8 |
| Max. output current | 18.0A |
| Maximum efficiency | 97.6% |
| Warranty | 60 months. |
| Warranty Policy | If the product is broken/damaged it will not be covered in the warranty. |
| Disclaimer | We strive for accurate warranty information, but manufacturers may update terms. Please visit their website for the latest details. |
