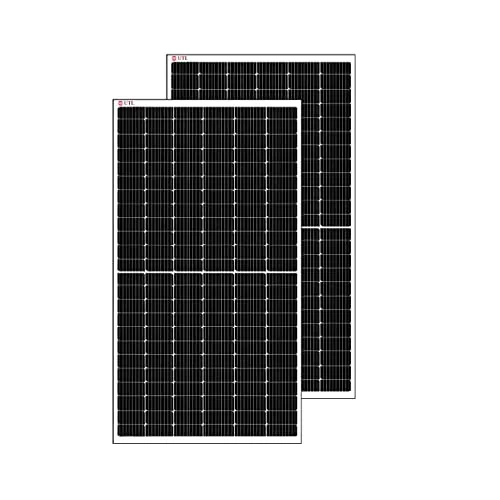

Solar Panels > UTL Solar PV Module 540Wp
The UTL Mono Solar Panel 540 Watt is the pinnacle of innovation in solar energy capture. This panel transcends the ordinary, boasting a remarkable 540 watts of peak power generation, meticulously engineered to convert sunlight into clean, sustainable electricity with exceptional efficiency.
UTL's commitment to cutting-edge technology extends beyond the cell itself. The panel incorporates Multi-Busbar technology, a revolutionary design that minimizes electrical resistance within the panel. This seemingly minor detail translates to a significant boost in power output, ensuring you harvest every available watt from the sun.
| ★ | AR Coated Tempered Glass, Anti- Reflective Module Surface. |
| ★ | Excellent Module Efficiency up to 20.95%. |
| ★ | Positive Power Tolerance up to 5W. |
| ★ | 100% EL Tested High PTC rating. |
| ★ | IP68 Junction Box for Long Endurance. |
| ★ | Quality and Reliability assurance in standard weather condition. |

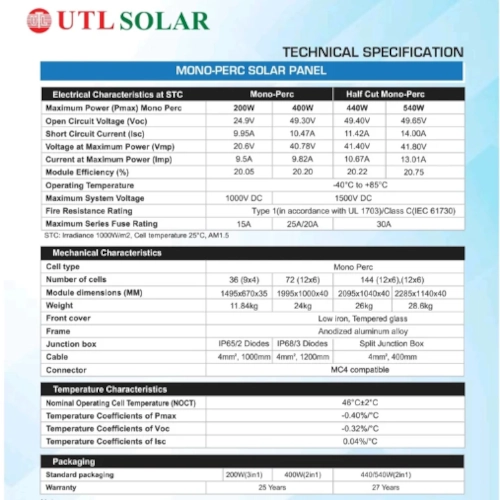

| Nominal Maximum Power (Pm) | 540Watts |
| Open Circuit Voltage (Voc) | 49.80V |
| Short Circuit Current (Isc) | 13.87A |
| Voltage at Maximum Power (Vmp) | 41.95V |
| Current at Maximum Power (Imp) | 13.01A |
| Maximum System Voltage | 1500V DC |

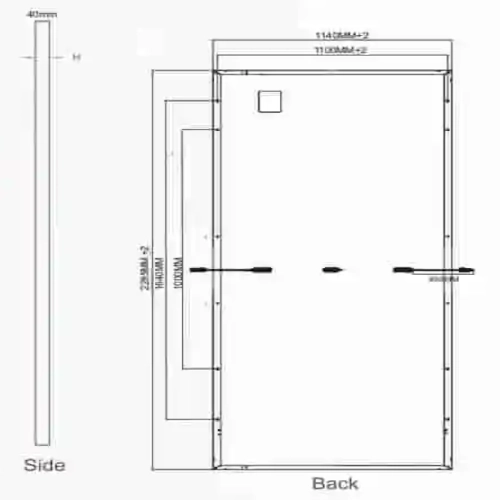

| Dimensions (LxWxT) - mm | 2285 x 1140 x 40 |
| Solar Cells per Module (Units) / Arrangement | 144, [(12 x 6)] x 2 |
| Solar Cell Type | Mono PERC Cell |
| Front Cover (Material / Thickness) | Low Iron, Tempered Glass |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP68 Split Junction Box |
| Warranty | 27 year linear power warranty. |
| Warranty Policy | If the product is broken/damaged it will not be covered in the warranty. Click Here for UTL's Warranty Statement. |
| Disclaimer | We strive for accurate warranty information, but manufacturers may update terms. Please visit their website for the latest details. |
